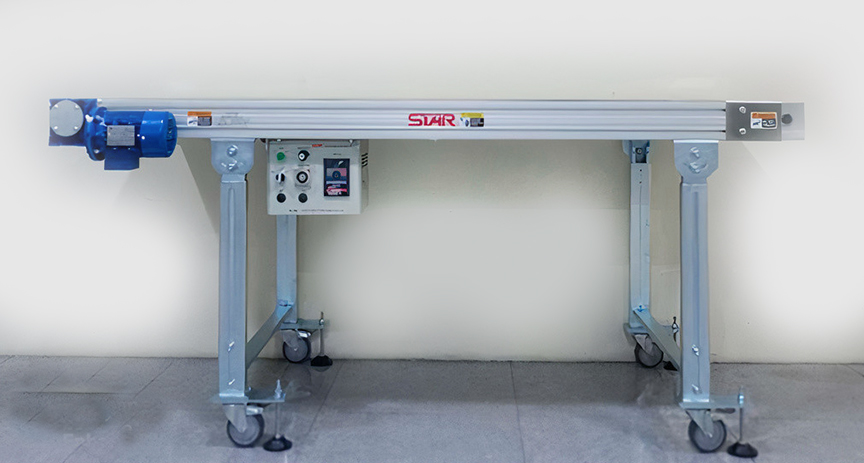

” STAR “ BRAND CONVEYOR BELT
SHC SERIES
ECONOMIC CONVEYOR TYPE
Features
- The aluminium frame and P.V.C belt achieve light-weight and compact-size structure.
- By linking with external signals from an unloader and other equipment, intermi ent.
- The flat belt surface can be used as a table for a simple finishing job.
- conveyance is available. so that the product stocking quantity can easily be changed.
- Conveyor have high touque (Direct drive sha 1 system)
- Inverter drive control.
| Model | Controller | Length (mm.) | Belt width (mm) | Height(mm) | Input | Output | Speed | Max. Loading (kg) | Net Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| SHC6000-7 | DRIVER IN/INT/T |
700 | 900 – 1300 (Adjustable) | AC 220 VAC (Single phase) |
AC induction Motor 250 w 3 Phase Motor Variable Speed 40w | 9m/min | 120 | 41 | |
| SHC6000-8 | 800 | *Except IW
type which height is 1100 1500 |
120 | 44 | |||||
| SHC6000-9 | 900 | 125 | 47 | ||||||
| SHC6000-10 | 6000 | 1000 | (Slide400mm) | 125 | 50 | ||||
| SHC7000-7 | 700 | 120 | 47 | ||||||
| SHC7000-8 | 800 | *Angle is adjustable too | 125 | 51 | |||||
| SHC7000-9 | 900 | 125 | 55 | ||||||
| SHC7000-10 | 7000 | 1000 | 130 | 58 | |||||
| SHC8000-7 | 700 | (At 50 Hz) | 125 | ||||||
| SHC8000-8 | 800 | 64 125 | 69 | ||||||
| SHC8000-9 | 900 | 130 | 74 | ||||||
| SHC8000-10 | 8000 | 1000 | 130 | 78 | |||||
| SHC9000-7 | 700 | 125 | 69 | ||||||
| SHC9000-8 | 800 | 130 | 75 | ||||||
| SHC9000-9 | 900 | 130 | 80 | ||||||
| SHC9000-10 | 9000 | 1000 | 135 | 86 |
Controller
Features
- • Variable speed control box
• Avaliable Fuction Control (Inverter Drive)
• Speed Adjust Operation only (IN)
• Timer Adjust Operation only (T)
• Speed And Timer Adjust Opera on (INT)
Option
Features
• Cover AL Frame (Safty Area And Dust Cover)
• Photo Stop And Photo Safty Product
• Cleaning Belt Conveyor Set
• Emergency Safty
• Other (Make To Oder)

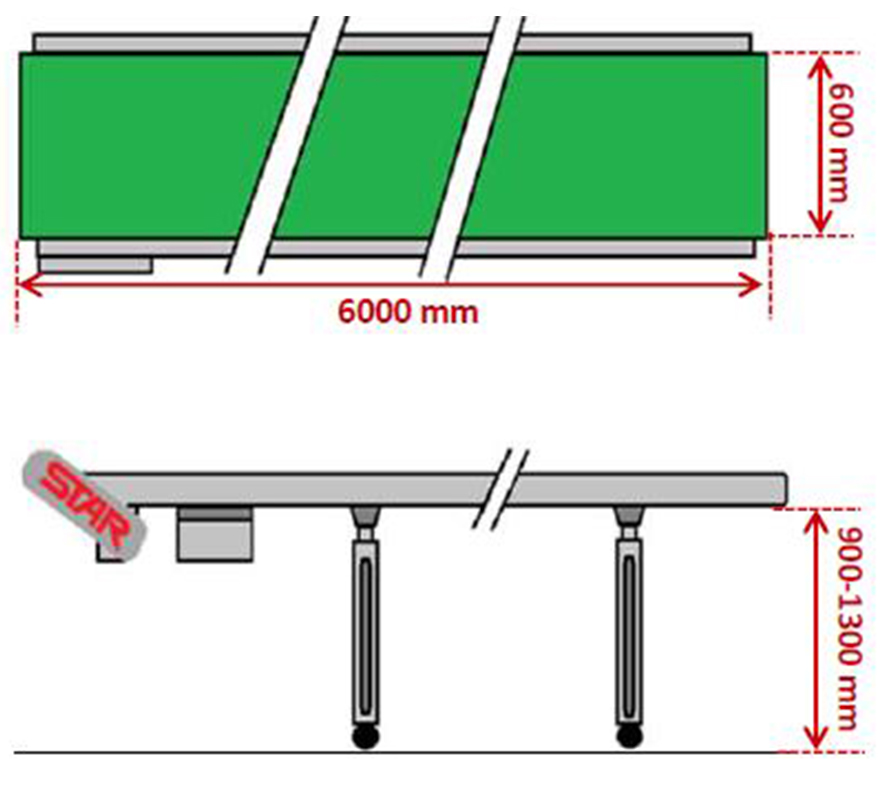

Model : SHC 6000-6INT

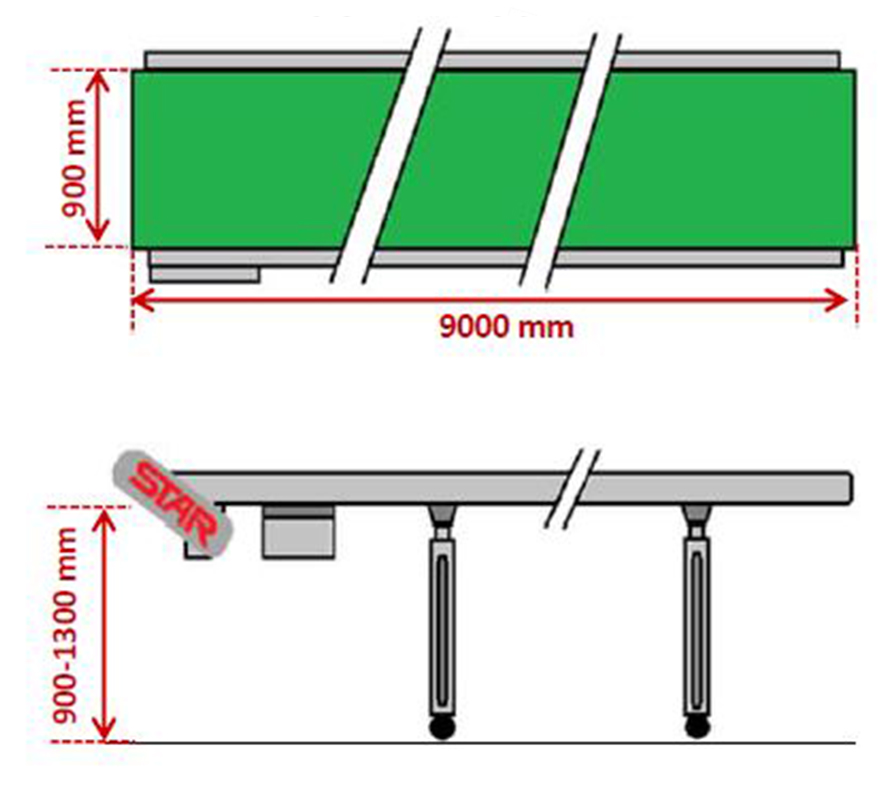

Model : SEC 9000-9INT
